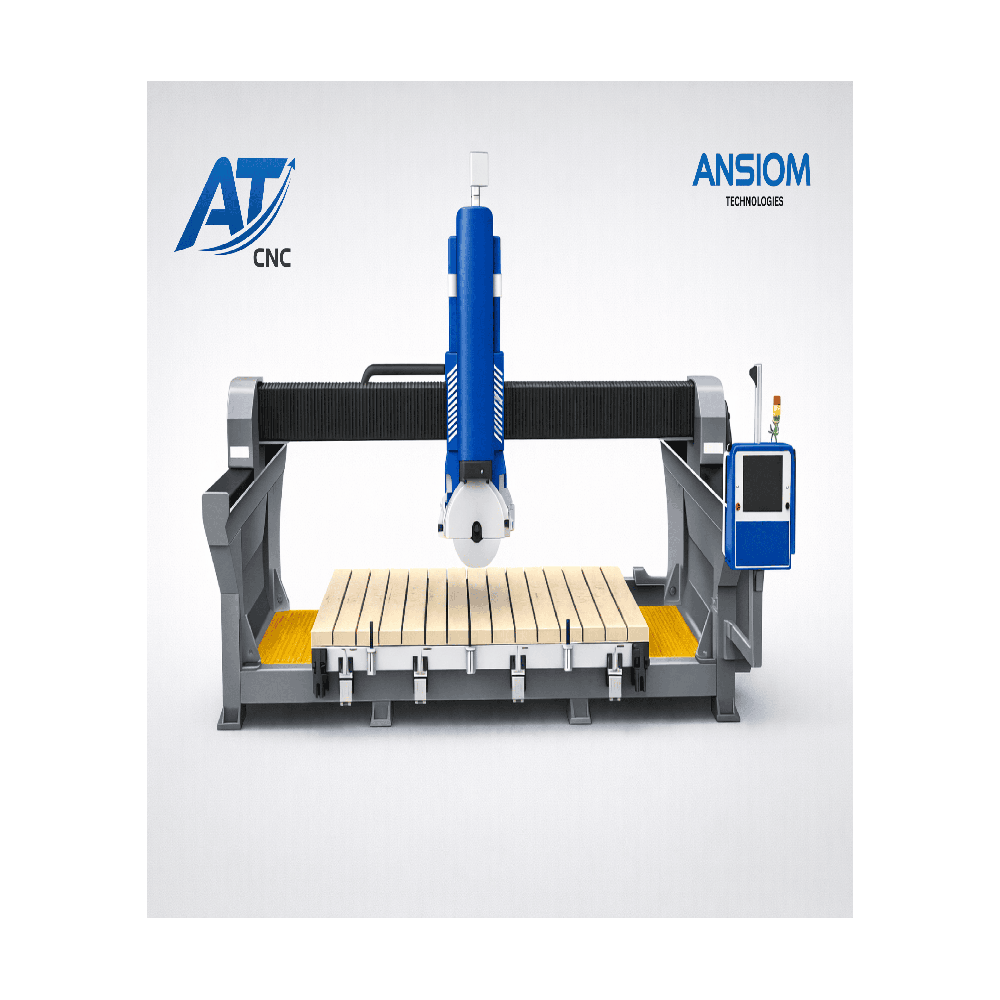

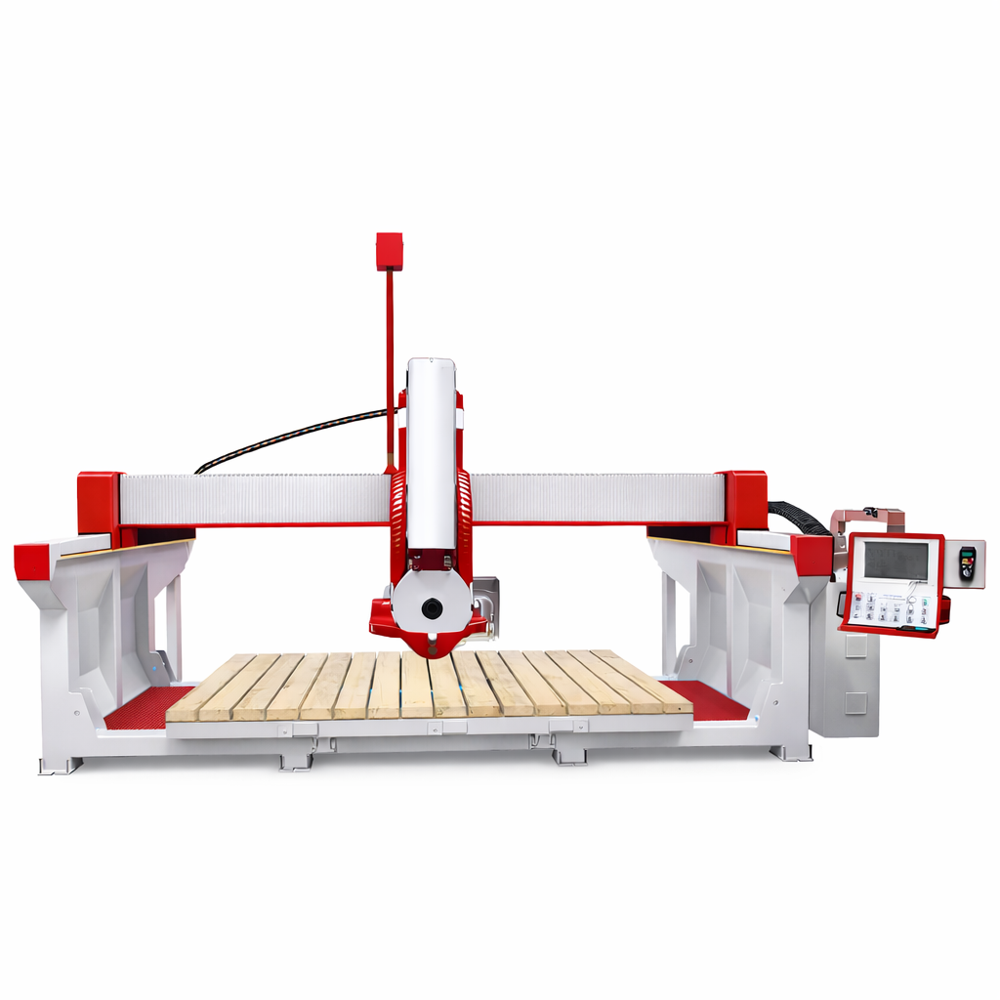

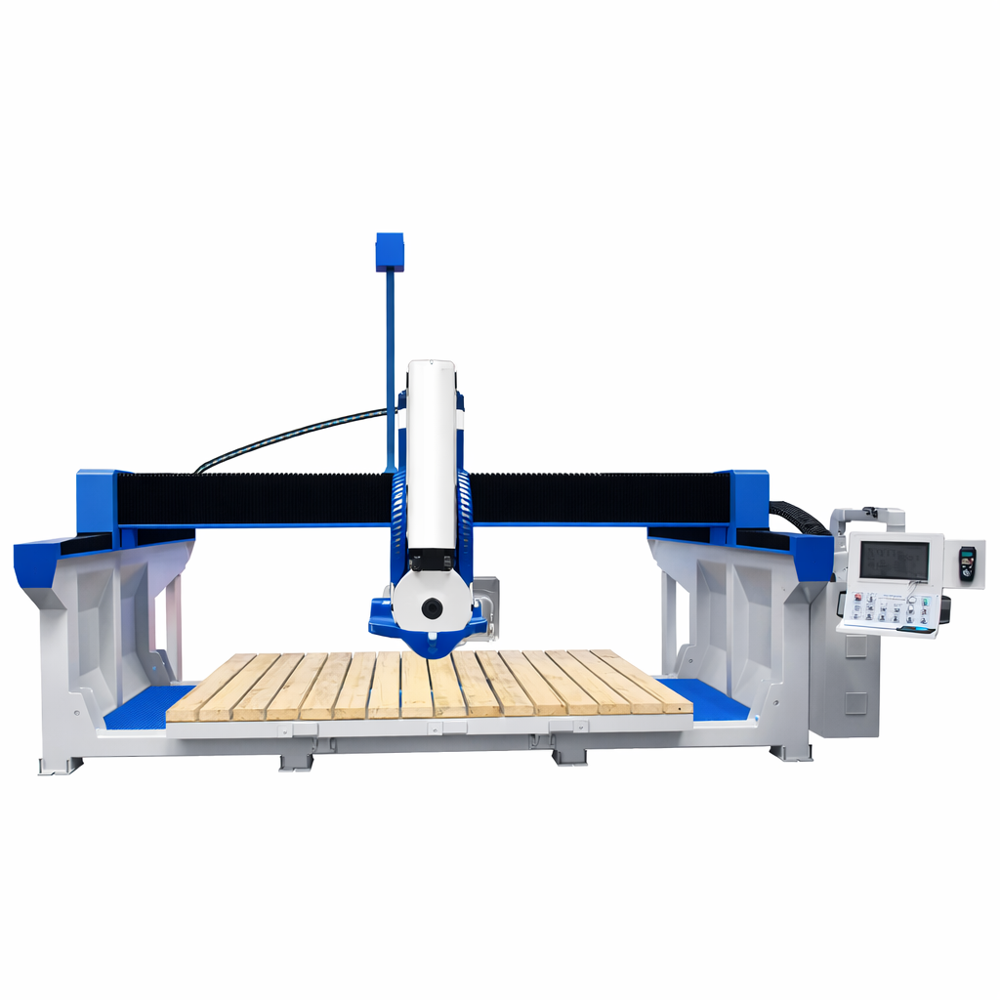

3/4/5-Axis Automatic Stone Bridge Saw Machine

Send Inquiry

Request To Call Back

3/4/5-Axis Automatic Stone Bridge Saw Machine

Name: 3/4/5-Axis Automatic Stone Bridge Saw Machine
Brand: Ansiom Technologies
Price: 1650000.0 INR
Availability: InStock

Price 1650000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

3/4/5-Axis Automatic Stone Bridge Saw Machine Specification

Product Type
Automatic Stone Bridge Saw Machine

General Use
Cutting Granite, Marble, and Stone Slabs

Material
Other

Type
Horizontal

Capacity
5500 Kg

Weight (kg)
3800 Kilograms (kg)

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
Yes

Power Source
Electric

Power Consumption
35 kW Kilowatt (kW)

Rigidity
High

Voltage
380 V / 50 Hz Volt (v)

Motor
AC Motor

Table Size
3200 x 2000 mm

Spindle Speed
0 - 3000 rpm, Adjustable RPM

Axial Choice
5-Axis (X, Y, Z, A, C)

Dimension (L*W*H)
5700 x 4500 x 2900 mm Millimeter (mm)

Color
Yellow

Warranty
ONE year

Water Consumption
250 L/h (with water pump for blade cooling)

Saw Blade Diameter
350 - 500 mm

Operation Mode
Manual and Automatic selectable

Application
Slab Cutting, Angle Cutting, Edge Profiling, Arc Cutting

Control System
CNC Integrated

Table Tilt
0 - 85 (Hydraulic)

Safety Features
Emergency Stop, Overload Protection, Limit Switches

Blade Tilt
0 - 45 (Manual/Automatic options)

Lubrication System
Automatic Lubrication

Language Support
Multi-language Interface

Table Rotation
0 - 360 (Automatic)

Cooling Method
Water-cooled Blade

Noise Level
80 dB

Precision
0.1 mm

3/4/5-Axis Automatic Stone Bridge Saw Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mundra

Payment Terms
Cheque

Supply Ability
10 Pieces Per Month

Delivery Time
45 Days

Sample Available
No

Sample Policy
Free samples are available

Packaging Details
wooden

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
iso900

3/4/5-Axis Automatic Stone Bridge Saw Machine About

3/4/5 Axis Stone Bridge Saw Cutting Machine

We are offering a high-performance 3/4/5 Axis Stone Bridge Saw Cutting Machine designed for precision cutting, chamfering, edge profiling, sink cutout work, slab processing, and complex stone fabrication. This advanced CNC stone bridge saw machine is suitable for cutting granite, marble, quartz, sandstone, artificial stone, and ceramic slabs with high speed and excellent accuracy.

Our 5 Axis Stone Bridge Saw Cutting Machine is equipped with a 15 kW main motor, 7.5 kW electric spindle, Jusan control system, 0-360 blade rotation, 0-180 blade tilting, 10-85 workbench rotation, camera, and suction cup system, making it ideal for kitchen countertop cutting, marble slab cutting, granite processing, sink hole cutting, chamfering, bevel cutting, and customized stone work.

Built with a heavy-duty thickened square tube welded frame, this machine ensures stable performance, long service life, and smooth operation in stone factories and fabrication workshops.

Product Features:

3 Axis / 4 Axis / 5 Axis Stone Bridge Saw options
Suitable for granite, marble, quartz, sandstone and ceramic slab cutting
Heavy-duty bridge saw frame structure
15 kW main motor with 7.5 kW spindle
0-360 blade rotation and 0-180 blade tilting
Large worktable size: 3200 x 2000 mm
CAD / CAM / DXF / G-Code supported
High cutting speed and precision
Camera and suction cup support
One year warranty

Applications:

Granite slab cutting
Marble slab cutting
Quartz countertop cutting
Sink cutout and chamfer cutting
Stone edge cutting and profiling
Kitchen top and vanity top fabrication

We are a trusted supplier of Stone Bridge Saw Machine, 5 Axis CNC Stone Cutting Machine, Granite Cutting Machine, Marble Cutting Machine, Quartz Bridge Saw Machine, and CNC Stone Processing Machine in India.

FAQ's of 3-Axis Automatic Stone Bridge Saw Machine:

Q: How does the CNC integrated control system benefit operators during stone cutting?

A: The CNC integrated control system automates complex cutting tasks, enhances accuracy within 0.1 mm, and streamlines both manual and automatic operations. This reduces human error and increases productivity for all operators.

Q: What materials can the 3-Axis Automatic Stone Bridge Saw Machine cut?

A: This machine is engineered to handle granite, marble, and a variety of stone slabs, ensuring versatility for different projects and industries.

Q: What safety features are included in this stone bridge saw machine?

A: It is equipped with an emergency stop, overload protection, and limit switches, offering comprehensive protection for operators during all cutting operations.

Q: Where is the ideal environment to install this machine?

A: Due to its size, weight, and power requirements, the machine is best installed in industrial or workshop settings with 380V / 50Hz electric supply and adequate water access for blade cooling.

Q: What applications does this machine best support?

A: The 3-Axis Automatic Stone Bridge Saw is perfect for slab cutting, angle cutting, arc cutting, and edge profiling, making it the ideal solution for detailed stonework and high-volume production.
